    SmallHD Focus 5.5-Inch OLED HDMI Monitor

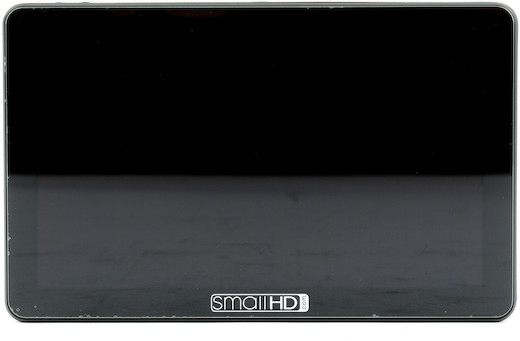

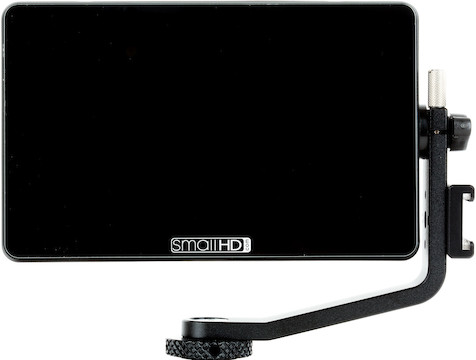

    The SmallHD FOCUS 5-inch OLED On-Camera HDMI Monitor is a lightweight HDMI monitor with a sharp, high-contrast, 1080p display. It’s perfect for compact HDMI capable camera rigs. Key features include:

    • Touchscreen 5.5" 1080p OLED display with HDMI input

    • Intuitive swipe OS interface

    • Hawk-Woods DV-F590 batteries to increase run-times

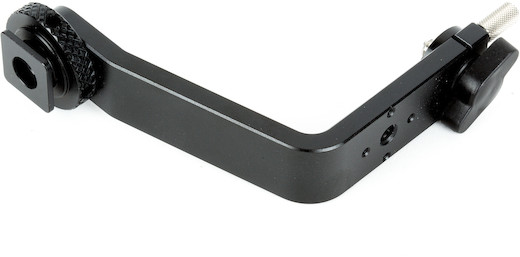

    • Easy mounting via Focus tilt arm or 1/4"-20 thread

    Read More

    Q & A

  • I heard this product takes a special HDMI cable. What cable do I need?
  • Does this rental include an HDMI cable?
    • No, but if you need one, you can find a selection of HDMI cables here.

  • Do you include the power adapters that enable the camera to be powered via the SmallHD Focus?
    • Since we do not know which model camera you’ll be using, we do not include any of the power adapters with the rental of the Focus. However, we do offer them as a separate rental item

    • If you’ll be shooting with a Canon camera that uses the LP-E6 battery (5D-series / 6D-series / 7D-series), you’ll want to also rent the SmallHD Focus to Canon LP-E6 Power Adapter.

    • If you’ll be shooting with a Canon camera that uses the LP-E8 battery (Rebel series up to the T5i), you’ll want to also rent the SmallHD Focus to Canon LP-E8 Power Adapter.

    • If you’ll be shooting with a Panasonic camera that uses the DMW-BLF19 battery (GH3 / GH4 / GH5), you’ll want to also rent the SmallHD Focus to Panasonic DMW-BLF19 Power Adapter

    • If you’ll be shooting with a Sony camera that uses the NP-FW50 battery (a7-series / a6xxx-series / NEX-series), you’ll want to also rent the SmallHD Focus to Sony NP-FW50 Power Adapter

    • If you’ll be shooting with a Nikon camera that uses the EN-EL14 / EN-EL14a battery (D5xxx-series / D3xxx-series / Df), you’ll want to also rent the SmallHD Focus to Nikon EN-EL14 Power Adapter.

  • Are there any known compatibility issues with this product?
    • Yes, a big one! Due to numerous issues, LensRentals cannot recommend the use of Sony NP-F970 Batteries with the SmallHD Focus. Instead, we now include and carry the Anton Bauer NP-F976 Battery specifically for this monitor. If you need spares, the NP-F976 is your ticket.

  • Specifications

    Brand

    SmallHD

    Display

    Type

    • OLED
    Screen Size
    • 5.5“
    Resolution
    • 1920 × 1080
    Pixel Density
    • 402 PPI
    Brightness
    • 350 nits
    Bit Depth
    • 8-bit

    Inputs/Outputs

    Video Inputs

    • 1x Micro-HDMI
    HDMI Input Formats
    • UHD-1 4K: 23.98/24/29.97/30
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080i: 50/59.94/60/100/119.88/120
    • 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    • 480p: 59.94/60/100/119.88/120/239.76/240
    • 480i: 59.94/60/100/119.88/120/239.76/240

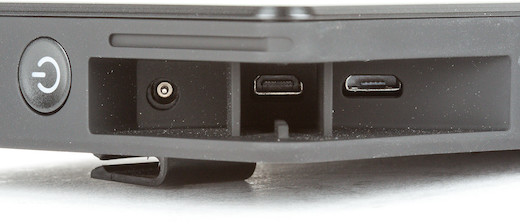

    Additional Inputs/Outputs
    • Stereo Out (Headphones)
    • Power Out 3.5mm

    Item Type

    Monitoring

    Monitoring Type

    Monitor

    Physical

    Dimensions (W x H x D)

    • 1.18 × 3.45 × 5.54″
    Accessory Mounts

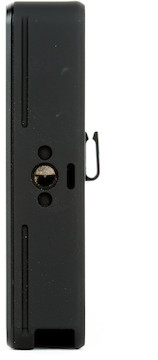

    • ¼-20 (center top and bottom, right)

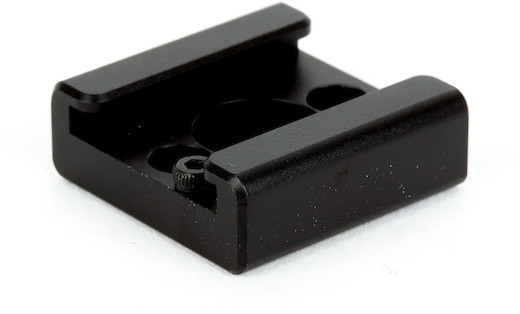

    • Shoe clamp
    Weight
    • 9.2 oz (without battery)
    Operating Temperature
    • 32°-140°F

    Power Supply

    Battery Compatibility

    • 1x Sony L-Style battery slot

    Recommended For

    DSLR Video
