Sony PXW-Z750 4K Broadcast Kit

$1775.00

7 Day

Rental

Available 05/16/24

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

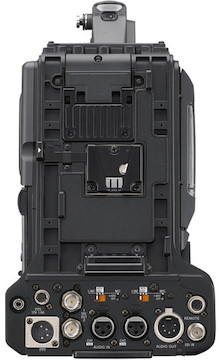

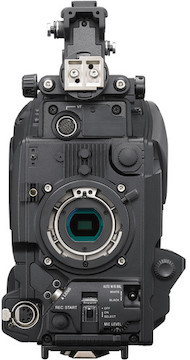

Sony PXW-Z750 4K
Sony HDVF-EL30 0.7" FHD OLED Viewfinder

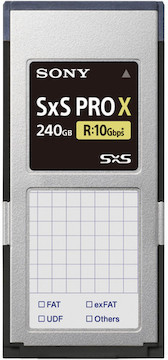

Sony 240GB SxS PRO X Memory Card

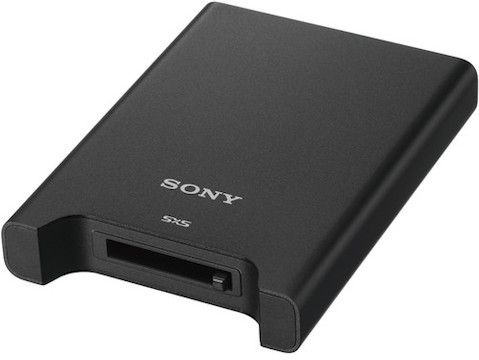

Sony SBAC-T40 Thunderbolt 3 SxS Card Reader/Writer

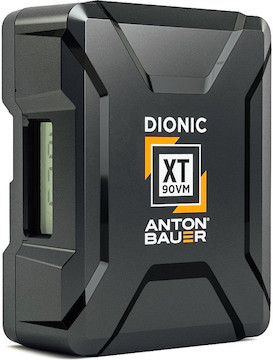

Anton Bauer Dionic XT90 V-Mount Battery
Anton Bauer LP2 Dual V-Mount Battery Charger

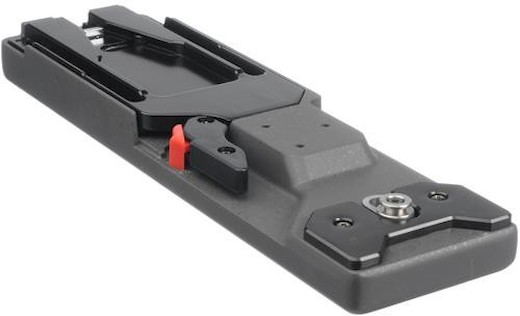

Sony VCT-14 Quick-Release Tripod Adapter

Resources

Sony PXW-Z750 Manual

Recording Times

HDVF-EL30 Manual

Sony PXW-Z750 4K Broadcast Kit

We built the Sony PXW-Z750 4K Broadcast Kit for videographers who need a 4K ENG / EFP camera solution that can easily adapt from the field to the studio. Centered around Sony’s PXW-Z750 camera, this V-mount powered, B4 compatible, broadcast-style kit solution includes everything you need to start shooting while still allowing you the freedom to choose your own lenses. Click on any of the package items below for more information.

The Sony PXW-Z750 4K Broadcast Kit includes:

You might also consider adding:

Power

Lenses

Media

Accessories

Tripods

Q & A

Does this kit include the Sony Wireless LAN module?

This kit does not include the Sony IFU-WLM3 wireless USB module but it is available as a separate rental item.

Can I attach the Z750 to a standard tripod head?

While the camera is designed to be shoulder mounted, we include a VCT adapter plate with this kit, allowing you to easily move from a tripod to the shoulder.

Specifications

Brand	Sony
Camera Type	Camcorder
Imaging	Sensor 2/3-type 3-chip 4K CMOS Maximum Resolution 3840 × 2160 Optical Filters Built-in Neutral Density Clear, 1/4ND, 1/16ND, 1/64ND
Inputs/Outputs	Audio Inputs CH1/CH2 In: XLR-type 3-pin MIC In: XLR-type 5-pin Audio Output Audio Out: XLR-type 5-pin Headphone Out: Stereo mini-jack Video Outputs (2) 12G/6G/3G/1.5G SDI BNC HDMI Type-A Additional Inputs/Outputs Genlock In: BNC, 1.0 Vp-p, 75 Ω, unbalanced Timecode In: BNC, 0.5 V to 18 Vp-p, 10 kΩ Timecode Out: BNC, 1.0 Vp-p, 50 Ω Sync Out:BNC, SD analog composite/HD-Y selectable SDI In: 1.5G Lens: 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current) Remote: 8-pin Ethernet: RJ-45
Item Type	Camera and Package
Monitoring	Camera LCD 960 × 540 3.5” Diagonal Viewfinder OLED 1920 × 1080 -4.0 to +2.0m loupe range
Mount	B4
Package Type	Sony Video
Physical	Dimensions (WxHxD) Approximately 5.91 × 10.59 × 13.07” Weight Approximately 8.3 lbs. Accessory Mounts: VCT wedge Additional: Viewfinder shoe assembly
Power Supply	AC Adapter 4-pin XLR (included) Battery Compatibility V-Mount Operating Time: Approximately 105 min (based on 95 Wh battery)
Recommended For	Pro Video
Recording	Media (2) SxS slots SDHX/SDXC (proxy) Main Format XAVC Intra (XAVC-I QFHD 300): 3840 × 2160 59.94p, 50p, 29.97p, 25p, 23.98p XAVC Intra (XAVC-I HD 100): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p XAVC Long (XAVC-L422 QFHD 200): 3840 × 2160 59.94p, 50p XAVC Long (XAVC-L420 QFHD 150): 3840 × 2160 59.94p, 50p XAVC Long (XAVC-L422 HD 50): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p MPEG HD422: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p 1280 × 720 59.94p, 50p, 29.97p, 25p, 23.98p MPEG HD420: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p 1440 × 1080: 59.94i, 50i 1280 × 720: 59.94p, 50p Proxy Format AVC/H.264 Main Profile 4:2:0 Long GOP, VBR 1920 × 1080, 6 MBps, 9 MBps (Target Rate) 1280 × 720, 6 MBps , 9 MBps (Target Rate) 640 × 360, 3 MBps (Target Rate) 480 × 270, 1 MBps, 500 kBps (Target Rate)

See All

Includes

Sony PXW-Z750 4K
Sony HDVF-EL30 0.7" FHD OLED Viewfinder
Sony 240GB SxS PRO X Memory Card
Sony SBAC-T40 Thunderbolt 3 SxS Card Reader/Writer
Anton Bauer Dionic XT90 V-Mount Battery
Anton Bauer LP2 Dual V-Mount Battery Charger
Sony VCT-14 Quick-Release Tripod Adapter

Specifications

Brand	Sony
Camera Type	Camcorder
Imaging	Sensor 2/3-type 3-chip 4K CMOS Maximum Resolution 3840 × 2160 Optical Filters Built-in Neutral Density Clear, 1/4ND, 1/16ND, 1/64ND
Inputs/Outputs	Audio Inputs CH1/CH2 In: XLR-type 3-pin MIC In: XLR-type 5-pin Audio Output Audio Out: XLR-type 5-pin Headphone Out: Stereo mini-jack Video Outputs (2) 12G/6G/3G/1.5G SDI BNC HDMI Type-A Additional Inputs/Outputs Genlock In: BNC, 1.0 Vp-p, 75 Ω, unbalanced Timecode In: BNC, 0.5 V to 18 Vp-p, 10 kΩ Timecode Out: BNC, 1.0 Vp-p, 50 Ω Sync Out:BNC, SD analog composite/HD-Y selectable SDI In: 1.5G Lens: 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current) Remote: 8-pin Ethernet: RJ-45
Item Type	Camera and Package
Monitoring	Camera LCD 960 × 540 3.5” Diagonal Viewfinder OLED 1920 × 1080 -4.0 to +2.0m loupe range
Mount	B4
Package Type	Sony Video
Physical	Dimensions (WxHxD) Approximately 5.91 × 10.59 × 13.07” Weight Approximately 8.3 lbs. Accessory Mounts: VCT wedge Additional: Viewfinder shoe assembly
Power Supply	AC Adapter 4-pin XLR (included) Battery Compatibility V-Mount Operating Time: Approximately 105 min (based on 95 Wh battery)
Recommended For	Pro Video
Recording	Media (2) SxS slots SDHX/SDXC (proxy) Main Format XAVC Intra (XAVC-I QFHD 300): 3840 × 2160 59.94p, 50p, 29.97p, 25p, 23.98p XAVC Intra (XAVC-I HD 100): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p XAVC Long (XAVC-L422 QFHD 200): 3840 × 2160 59.94p, 50p XAVC Long (XAVC-L420 QFHD 150): 3840 × 2160 59.94p, 50p XAVC Long (XAVC-L422 HD 50): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p MPEG HD422: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p 1280 × 720 59.94p, 50p, 29.97p, 25p, 23.98p MPEG HD420: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p 1440 × 1080: 59.94i, 50i 1280 × 720: 59.94p, 50p Proxy Format AVC/H.264 Main Profile 4:2:0 Long GOP, VBR 1920 × 1080, 6 MBps, 9 MBps (Target Rate) 1280 × 720, 6 MBps , 9 MBps (Target Rate) 640 × 360, 3 MBps (Target Rate) 480 × 270, 1 MBps, 500 kBps (Target Rate)

See All

Resources

Sony PXW-Z750 Manual

Recording Times

HDVF-EL30 Manual

Reviews

See Reviews

Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:

No Coverage

Lenscap

LenscapPlus

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$330.00	$1250.00	$1580.00	$526.67
4 days	$353.00	$1337.00	$1690.00	$422.50
7 days	$471.00	$1775.00	$2246.00	$320.86
10 days	$636.00	$2388.00	$3024.00	$302.40
14 days	$824.00	$3088.00	$3912.00	$279.43
21 days	$1107.00	$4139.00	$5246.00	$249.81
30 days	$1389.00	$5189.00	$6578.00	$219.27
45 days	$1813.00	$6765.00	$8578.00	$190.62
60 days	$2120.00	$7904.00	$10024.00	$167.07
90 days	$2732.00	$10180.00	$12912.00	$143.47

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$220.00	$1250.00	$1470.00	$490.00
4 days	$236.00	$1337.00	$1573.00	$393.25
7 days	$314.00	$1775.00	$2089.00	$298.43
10 days	$424.00	$2388.00	$2812.00	$281.20
14 days	$550.00	$3088.00	$3638.00	$259.86
21 days	$738.00	$4139.00	$4877.00	$232.24
30 days	$926.00	$5189.00	$6115.00	$203.83
45 days	$1209.00	$6765.00	$7974.00	$177.20
60 days	$1413.00	$7904.00	$9317.00	$155.28
90 days	$1821.00	$10180.00	$12001.00	$133.34

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$1250.00	$416.67
4 days	$1337.00	$334.25
7 days	$1775.00	$253.57
10 days	$2388.00	$238.80
14 days	$3088.00	$220.57
21 days	$4139.00	$197.10
30 days	$5189.00	$172.97
45 days	$6765.00	$150.33
60 days	$7904.00	$131.73
90 days	$10180.00	$113.11
