TASCAM CA-XLR2d-F XLR Microphone Adapter Kit for Fuji

$44.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • TASCAM CA-XLR2d-F XLR Adapter
  • 3.5mm Mini to 3.5mm Mini Stereo cable
  • Stubby dual-end screwdriver
  • TASCAM mic holder for XLR2d
  • TASCAM CA-AK1-F for Fuji Shoe Mount
  • TASCAM CA-AK1-AN for 3.5mm analog audio adapter
  • TASCAM battery adapter for XLR2d

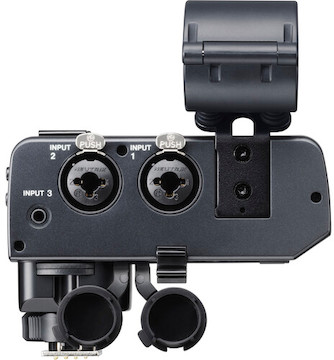

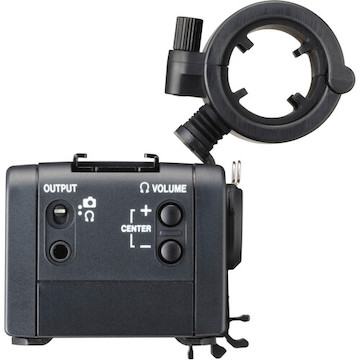

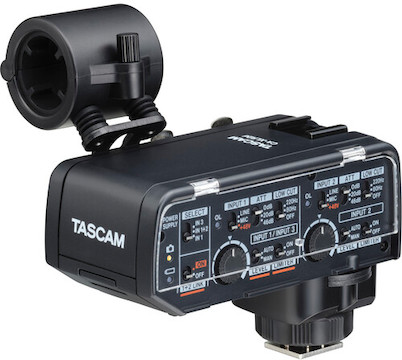

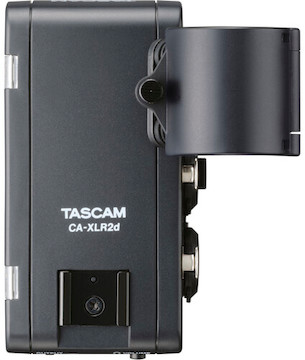

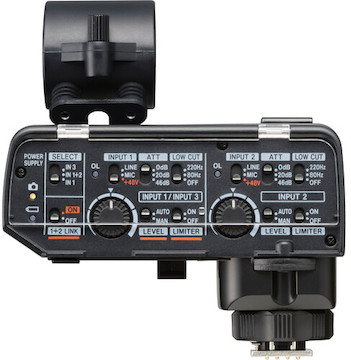

TASCAM CA-XLR2d-F XLR Microphone Adapter Kit for Fuji

The TASCAM CA-XLR2d-F XLR Microphone Adapter for Fuji lets you use your favorite XLR mic to capture high-quality, low-noise recordings directly to your Fuji camera. Key features include:

  • Adapts XLR mics to camera input

  • Fuji mount for digital audio and power

  • HDDA preamp; analog/digital converter

  • Provides 48V phantom power to condenser mics

Read More

Q & A

  • Do you offer this adapter for other camera types?
  • Does this rental include batteries?
  • Specifications

    Audio Type

    Other Audio

    Brand

    TASCAM

    General

    Number of Channels

    • 2
    Analog to Digital Converter
    • Bit Rate: 16/24
    • Sampling Frequency: 48/96 kHz (with Compatible Cameras via Adapter)
    Power Consumption
    • 2 W Maximum

    Inputs/Outputs

    Balanced Microphone Inputs

    • Input Switch to MIC
    • Input Impedance: ≥ 2 Kilohms
    • Maximum Input Level: +6 dBu (Att Setting at 46 dB)
    • Minimum Input Level: -60 dBu (Att Setting at 0 dB)
    • Gain Range: 66 dB
    Balanced Line Inputs
    • Input Switch to LINE
    • Input Impedance: ≥ 10 Kilohms
    • Maximum Input Level: +24 dBu (Att Setting at 46 dB)
    • Minimum Input Level: +4 dBu (Att Setting at 0 dB) Gain Range: 66 dB
    Unbalanced Input
    • Connector: 3.5mm Stereo Input Jack
    • Input Impedance: ≥ 2 Kilohms
    • Maximum Input Level: +6 dBu (Att Setting at 46 dB)
    • Minimum Input Level: -60 dBu (Att Setting at 0 dB)
    • Gain Range: 66 dB
    • Plug-In Power: 2.7 V2
    Unbalanced Output
    • Connector: 3.5mm Stereo Input Jack
    • Output Level: 0.29 Vrms (Fixed, Output Setting on Camera), 0.5 Vrms (Output Volume Setting at Max, Output Setting on Headphones)
    • Headphone Working Impedance: 16 to 250 Ohms

    Item Type

    Audio

    Mfr. Model Number

    CA-XLR2D-F

    Physical

    Dimensions (L x W x H)

    • 3.5 × 4.7 × 4.3″
    Weight
    • 0.8 lb.

    Includes

    • TASCAM CA-XLR2d-F XLR Adapter
    • 3.5mm Mini to 3.5mm Mini Stereo cable
    • Stubby dual-end screwdriver
    • TASCAM mic holder for XLR2d
    • TASCAM CA-AK1-F for Fuji Shoe Mount
    • TASCAM CA-AK1-AN for 3.5mm analog audio adapter
    • TASCAM battery adapter for XLR2d

    Specifications

    Audio Type

    Other Audio

    Brand

    TASCAM

    General

    Number of Channels

    • 2
    Analog to Digital Converter
    • Bit Rate: 16/24
    • Sampling Frequency: 48/96 kHz (with Compatible Cameras via Adapter)
    Power Consumption
    • 2 W Maximum

    Inputs/Outputs

    Balanced Microphone Inputs

    • Input Switch to MIC
    • Input Impedance: ≥ 2 Kilohms
    • Maximum Input Level: +6 dBu (Att Setting at 46 dB)
    • Minimum Input Level: -60 dBu (Att Setting at 0 dB)
    • Gain Range: 66 dB
    Balanced Line Inputs
    • Input Switch to LINE
    • Input Impedance: ≥ 10 Kilohms
    • Maximum Input Level: +24 dBu (Att Setting at 46 dB)
    • Minimum Input Level: +4 dBu (Att Setting at 0 dB) Gain Range: 66 dB
    Unbalanced Input
    • Connector: 3.5mm Stereo Input Jack
    • Input Impedance: ≥ 2 Kilohms
    • Maximum Input Level: +6 dBu (Att Setting at 46 dB)
    • Minimum Input Level: -60 dBu (Att Setting at 0 dB)
    • Gain Range: 66 dB
    • Plug-In Power: 2.7 V2
    Unbalanced Output
    • Connector: 3.5mm Stereo Input Jack
    • Output Level: 0.29 Vrms (Fixed, Output Setting on Camera), 0.5 Vrms (Output Volume Setting at Max, Output Setting on Headphones)
    • Headphone Working Impedance: 16 to 250 Ohms

    Item Type

    Audio

    Mfr. Model Number

    CA-XLR2D-F

    Physical

    Dimensions (L x W x H)

    • 3.5 × 4.7 × 4.3″
    Weight
    • 0.8 lb.
