Teradek Bolt 4K LT HDMI Kit (Gold Mount)

$162.00
/
7 Day

Rental

Available Wednesday

Renting this item will adjust your rental dates.

Interested in purchasing?

Includes

  • Teradek Bolt 4K LT HDMI Transmitter
  • RX Gold Mount plate – male
  • RX Gold Mount plate – female
  • Teradek Bolt 4K LT HDMI Receiver
  • RX Gold Mount plates
  • 1/4"-20 shoe adapter
  • D-Tap to LEMO cable
  • AC adapter
  • USB 2.0 A to Type C cable
  • 5/8" to 1/4"-20 stand adapter
  • Wireless antenna (7)

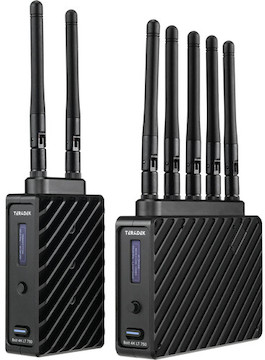

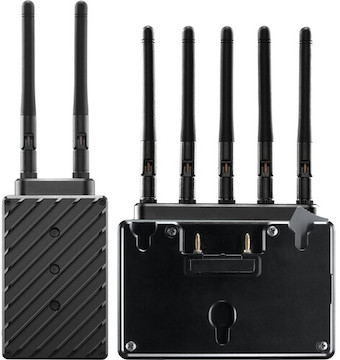

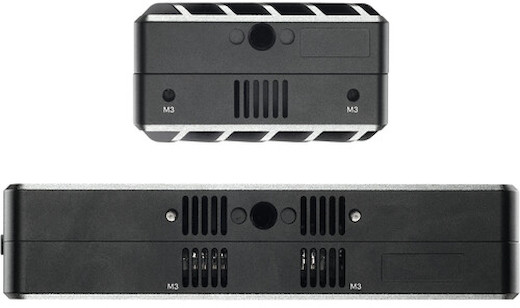

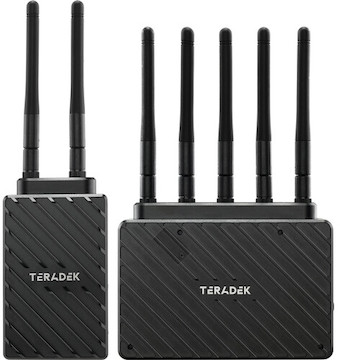

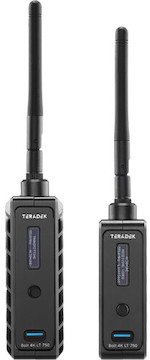

Teradek Bolt 4K LT HDMI Kit (Gold Mount)

The Teradek Bolt 4K LT HDMI Kit (Gold Mount) lets you transmit and receive lossless HD video from up to 750 feet line of sight. It’s compatible with the entire Bolt 4K line. Key features include:

  • Transmit / receive UHD 4K30p video from up to 750 feet

  • HDMI monitoring; Rec. 2020 HDR 10-bit 4:2:2 color gamut

  • Gold Mount pass-thru plates and AC adapter included

  • Gold Mount batteries not included

Read More

Q & A

  • Is this kit compatible with previous Teradek Bolt Pro or XT models?
    • This kit is only compatible with Teradek Bolt 4K and Bolt 4K LT series devices over the 5 GHz signal spectrum.

  • Does this rental include Gold Mount batteries?
    • This rental includes a Gold Mount battery plate but doesn’t include batteries or a charger. You can rent Gold Mount batteries separately here.

  • Do you offer this kit with a V-Mount battery plate?
    • Yes! We also offer this kit with a V-Mount battery plate.

  • Does this rental include any mounting hardware?
    • Yes, this rental includes a 5/8" receiver with 1/4"-20 threading.

  • Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Mfr. Model Number

    10-2205-G

    Monitoring Type

    Wireless

    Receiver

    Physical
    Mounting

    • 1x 1/4"-20 Female
    Dimensions (L x W x H)
    • 4.8 × 3.7 × 1.1″
    Weight
    • 0.6 lb.

    Environmental
    IP Rating
    • None
    Operating Temperature
    • 32 to 104°F

    Format Support
    Video Format (HDMI)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    Power
    DC Input Power
    • 6 to 28 VDC
    Battery Type
    • 1x Gold Mount (Interchangeable Mount)
    Power Consumption
    • 11 W

    Wireless
    Wireless Range
    • 750’ / 228.6m (Line-of-Sight)
    Channel Bandwidth
    • 40 MHz, 20 MHz
    Non-DFS Frequency Range
    • US: 5.19 to 5.23 GHz
    • US: 5.75 to 5.79 GHz
    DFS Frequency Range
    • US: 5.27 to 5.67 GHz
    Latency
    • < 0.01 ms
    RF Power
    • 19 dBm
    Wi-Fi
    • Yes

    Inputs/Outputs

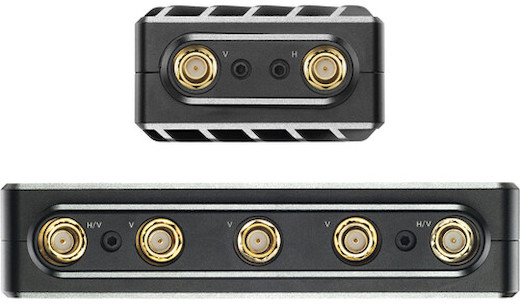

    Antenna Ports
    • 5x RP-SMA Female
    Video
    • 1x HDMI Type A (HDMI 1.4b) Output
    Embedded Audio
    • HDMI: 2-Channel
    Audio
    • None
    Power I/O
    • 1x LEMO 2-Pin (28 VDC)
    • Input 1x Proprietary (28 VDC) Input
    Other I/O
    • 1x Micro-USB Input
    Encryption
    • 256-Bit AES

    System

    Bolt 4K

    Transmitter

    Physical
    Mounting

    • 1x 1/4"-20 Female
    Dimensions (L x W x H)
    • 4.1 × 2.4 × 1.3″
    Weight
    • 0.5 lb.

    Environmental
    IP Rating
    • None
    Operating Temperature
    • 32 to 104°F

    Format Support
    Video Format (HDMI)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    Power
    DC Input Power
    • 6 to 28 VDC
    Battery Type
    • 1x LP-E6, L-Series (Interchangeable Mount)
    Power Consumption
    • 9 W

    Wireless
    Wireless Range
    • 750’ / 228.6m (Line-of-Sight)
    Channel Bandwidth
    • 40 MHz, 20 MHz
    Frequency Range (Non-DFS)
    • US: 5.19 to 5.23
    • GHz US: 5.75 to 5.79 GHz
    Frequency Range (DFS)
    • US: 5.27 to 5.67 GHz
    Latency
    • < 0.01 ms
    RF Power
    • 19 dBm
    Wi-Fi
    • Yes

    Inputs/Outputs
    Antenna Ports
    • 2x RP-SMA Female
    Video
    • 1x HDMI Type A (HDMI 1.4b) Input
    • 1x HDMI Type A (HDMI 1.4b) Loop Output
    Embedded Audio
    • HDMI: 2-Channel
    Audio
    • None
    Power I/O
    • 1x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1x Micro-USB Input
    Encryption
    • 256-Bit AES

    Includes

    • Teradek Bolt 4K LT HDMI Transmitter
    • RX Gold Mount plate – male
    • RX Gold Mount plate – female
    • Teradek Bolt 4K LT HDMI Receiver
    • RX Gold Mount plates
    • 1/4"-20 shoe adapter
    • D-Tap to LEMO cable
    • AC adapter
    • USB 2.0 A to Type C cable
    • 5/8" to 1/4"-20 stand adapter
    • Wireless antenna (7)

    Specifications

    Brand

    Teradek

    Item Type

    Monitoring

    Mfr. Model Number

    10-2205-G

    Monitoring Type

    Wireless

    Receiver

    Physical
    Mounting

    • 1x 1/4"-20 Female
    Dimensions (L x W x H)
    • 4.8 × 3.7 × 1.1″
    Weight
    • 0.6 lb.

    Environmental
    IP Rating
    • None
    Operating Temperature
    • 32 to 104°F

    Format Support
    Video Format (HDMI)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    Power
    DC Input Power
    • 6 to 28 VDC
    Battery Type
    • 1x Gold Mount (Interchangeable Mount)
    Power Consumption
    • 11 W

    Wireless
    Wireless Range
    • 750’ / 228.6m (Line-of-Sight)
    Channel Bandwidth
    • 40 MHz, 20 MHz
    Non-DFS Frequency Range
    • US: 5.19 to 5.23 GHz
    • US: 5.75 to 5.79 GHz
    DFS Frequency Range
    • US: 5.27 to 5.67 GHz
    Latency
    • < 0.01 ms
    RF Power
    • 19 dBm
    Wi-Fi
    • Yes

    Inputs/Outputs
    Antenna Ports
    • 5x RP-SMA Female
    Video
    • 1x HDMI Type A (HDMI 1.4b) Output
    Embedded Audio
    • HDMI: 2-Channel
    Audio
    • None
    Power I/O
    • 1x LEMO 2-Pin (28 VDC)
    • Input 1x Proprietary (28 VDC) Input
    Other I/O
    • 1x Micro-USB Input
    Encryption
    • 256-Bit AES

    System

    Bolt 4K

    Transmitter

    Physical
    Mounting

    • 1x 1/4"-20 Female
    Dimensions (L x W x H)
    • 4.1 × 2.4 × 1.3″
    Weight
    • 0.5 lb.

    Environmental
    IP Rating
    • None
    Operating Temperature
    • 32 to 104°F

    Format Support
    Video Format (HDMI)
    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    Power
    DC Input Power
    • 6 to 28 VDC
    Battery Type
    • 1x LP-E6, L-Series (Interchangeable Mount)
    Power Consumption
    • 9 W

    Wireless
    Wireless Range
    • 750’ / 228.6m (Line-of-Sight)
    Channel Bandwidth
    • 40 MHz, 20 MHz
    Frequency Range (Non-DFS)
    • US: 5.19 to 5.23
    • GHz US: 5.75 to 5.79 GHz
    Frequency Range (DFS)
    • US: 5.27 to 5.67 GHz
    Latency
    • < 0.01 ms
    RF Power
    • 19 dBm
    Wi-Fi
    • Yes

    Inputs/Outputs
    Antenna Ports
    • 2x RP-SMA Female
    Video
    • 1x HDMI Type A (HDMI 1.4b) Input
    • 1x HDMI Type A (HDMI 1.4b) Loop Output
    Embedded Audio
    • HDMI: 2-Channel
    Audio
    • None
    Power I/O
    • 1x LEMO 2-Pin (28 VDC) Input
    Other I/O
    • 1x Micro-USB Input
    Encryption
    • 256-Bit AES
