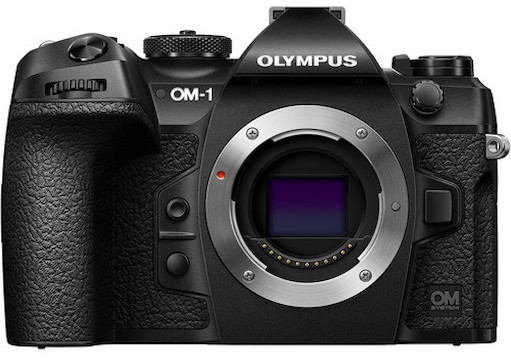

| Brand |
OM SYSTEM |
| Camera Mount |
Micro 4/3 |
| Camera Type |
Mirrorless |
| Environmental |
Operating Temperature - 14 to 104°F / -10 to 40°C
Storage Temperature- -4 to 140°F / -20 to 60°C
Operating HumidityStorage Humidity |
| Exposure Control |
Shutter Type - Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed – Mechanical ShutterShutter Speed – Electronic ShutterShutter Speed – Electronic Front Curtain ShutterBulb/Time ModeISO Sensitivity Range – Photo/Video- 200 to 25,600 in Manual, Auto Mode (Extended: 80 to 102,400)
Metering Methods- Center-Weighted Average, Highlight, Multi-Zone, Spot
Precise Scan Rate ControlExposure Modes- Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation- -5 to +5 EV (1/3, 1/2, 1 EV Steps)
Metering RangeWhite BalanceWhite-Balance Presets- AWB, Custom, Flash, Fluorescent, Overcast, Shade, Sunlight, Tungsten, Underwater
Continuous ShootingInterval Recording |
| Flash |
Built-In Flash/Light Flash Modes- Fill In, Manual, Off, Red-Eye Reduction, Slow Sync
Maximum Sync SpeedFlash Compensation- -3 to +3 EV (1/3, 1/2, 1 EV Steps)
Dedicated Flash SystemExternal Flash Connection |
| Focus |
Focus Type Focus Modes- Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points – Photo, Video |
| General |

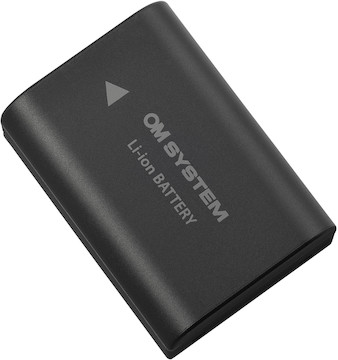

Battery Type - 1x BLX-1 Rechargeable Lithium-Ion (Approx. 500 Shots)
Shoe MountTripod Mounting Thread- 1x 1/4"-20 Female (Bottom)
Material of ConstructionDimensions (W x H x D)- 5.3 × 3.6 × 2.9″ / 134.8 × 91.6 × 72.7mm
Weight- 1.1 lb. / 511 g (Body Only)
|
| Imaging |
Sensor Resolution - Actual: 22.9 Megapixel
- Effective: 20.4 Megapixel
Sensor Dimensions- 17.4 × 13mm (Four Thirds) BSI MOS
Sensor Crop (35mm Equivalent)Image StabilizationBuilt-In ND FilterFilter Type- 3 styles (Soft / Medium / Hard)
Filter AdjustmentCapture Type |
| Interface |
Media/Memory Card Slot - Dual Slot: SD/SDHC/SDXC (UHS-II)
Video I/O- 1x Micro-HDMI (Unspecified Signal) Output
Audio I/O- 1x 1/8" / 3.5mm TRS Stereo Microphone Input
- 1x 1/8" / 3.5mm TRS Stereo Headphone Output
Power I/OOther I/O- 1x USB-C Data Input/Output (Shared with Power Input)
- 1x PC Sync Socket
Wireless- 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2
Mobile App Compatible- Yes: Android & iOS
- App Name: OM Image Share
- Functionality: Access Stored Files, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)- GPS, *via Connected Smartphone
|
| Item Type |

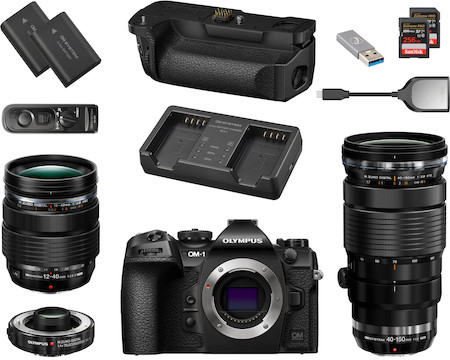

Package |
| Monitor |
Display Size ResolutionDisplay Type- Articulating Touchscreen LCD
|
| Package Type |
Photo & Video and Camera |
| Still Image Capture |
Image Sizes – 4:3 - 50 MP (8160 × 6120) *via In-Camera Pixel-Shift
- 25 MP (5760 × 4320) *via In-Camera Pixel-Shift 20 MP (5184 × 3888)
Aspect RatiosImage File FormatsBit Depth |
| Video Capture |
Internal Recording Modes – H.264/MPEG-4 AVC - 4096 × 2160 at 23.98/25/29.97/50/59.94 fps [202 Mb/s]
- 3840 × 2160 at 23.98/25/29.97/50/59.94 fps [202 Mb/s]
- 1920 × 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps [202 Mb/s]
Internal Recording Modes – H.265- 4096 × 2160 at 23.98/25/29.97/50/59.94 fps [152 Mb/s]
- 3840 × 2160 at 23.98/25/29.97/50/59.94 fps [152 Mb/s]
- 1920 × 1080 at 23.98/25/29.97/50/59.94/100/120/200 fps [162 Mb/s]
External Recording Modes – 4:2:2/RAW 8/12-Bit via HDMI- 4096 × 2160
- 3840 × 2160
- 1920 × 1080
Fast-/Slow-Motion SupportGamma CurveRecording LimitIP StreamingBuilt-In MicrophoneAudio Recording |
| Viewfinder |
Type - Built-In Electronic (OLED)
ResolutionEye PointCoverageMagnificationDiopter Adjustment |
