Z CAM E2-M4 4K Cinema Camera w/ Active Lock Mount (MFT)

$137.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

E2-M4 4K camera
Locking MFT mount
D-Tap to LEMO Adapter
D-Tap to barrel adapter
Non polarized cable
WiFi antenna
DV-F590 battery
AC-VQ1051D charger

Not Included

AC adapter

Resources

Manual

Z Cam App (iOS)

Z Cam App (Android)

Z CAM E2-M4 4K Cinema Camera w/ Active Lock Mount (MFT)

The Z CAM E2-M4 4K Cinema Camera w/ Active Lock Mount (MFT) is a compact, E2 Flagship camera with a 4/3"-type sensor and ProRes and RAW capture support. Key features include:

19 × 13mm, M43, CMOS sensor, 16-stop dynamic range
Record H.265 10-bit DCI 4K up to 120 fps to Cfast cards
Active, locking Micro 4/3 mount
Powered by Sony L-series (NP-F) batteries

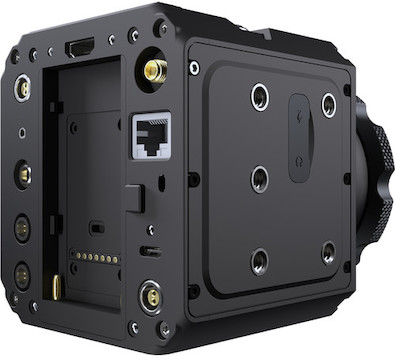

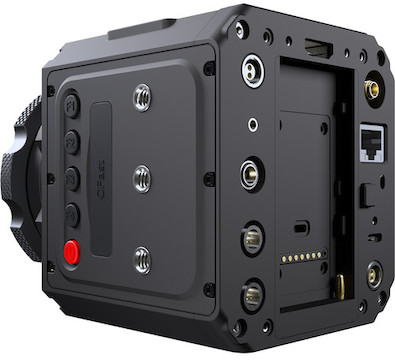

What’s Changed From The E2? Aside from being a bit cheaper, the functionality of the Z CAM E2-M4 4K Cinema Camera w/ Active Lock Mount (MFT) is largely unchanged from the Z Cam E2, but for the removal of the camera sync feature, COM port, and LEMO I/O port. These ports have been replaced with 12V Auxiliary power output via 2-pin LEMO and two 4-pin CTRL ports.

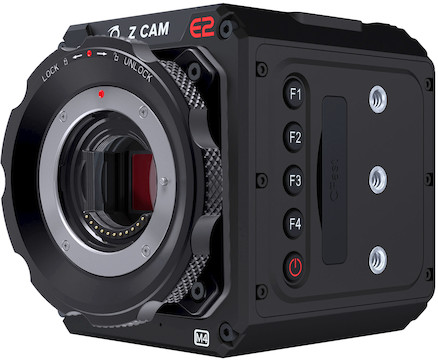

Locking M43 Lens Mount. This E2-M4 comes with a pre-installed active M4/3 lens mount with a locking ring, making it ideal for heavier telephoto and cine-style lenses. The electronics have the same Olympus and Panasonic lens compatibility (see the official list) as the original E2-M4 and E2.

ProRes, ZRAW, & H.265 Recording. This camera can capture up to ProRes HQ, DCI 4K/30p and H.265, DCI 4K/120p to CFast 2.0 or USB Type C external drives. The sensor is Micro Four Thirds size and capable of 16-stops of dynamic range. With current firmware, you’ll also get Z RAW recording capabilities. It’s worth noting that side-by-side tests have shown negligible improvements compared to ProRes HQ.

RAW Out Over HDMI. In addition to the codec-rich internal recording options, the Z Cam E2-M4 can also output 12-bit ProRes RAW over HDMI when paired with a compatible recorder like the Atomos Ninja V. With the latest firmware, the camera can output up to UHD 4K/120p to the updated Ninja V+.

Cheap & Small. Z Cam seems to have found their niche with entry-level cameras that are not much bigger than the lenses that will attach to them. That’s still the case with the Z Cam E2-M4 4K Cinema Camera. Much like the Blackmagic Micro Cinema Camera, the E2-M4 is not much more than a sensor in a tiny box.

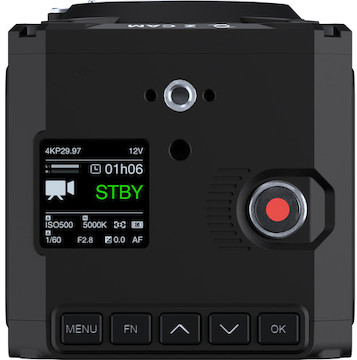

Wireless Control. While the Z Cam E2 features an LCD for interfacing and on-board controls, it is limited by the small amount of real estate on the body itself. Fortunately, users can connect to the camera’s ad hoc Wi-Fi for direct control with the free Z Camera app on compatible iOS and Android devices.

Powered by Sony L-Series Batteries or D-Tap. We include a Hawk-Woods DV-F590 L-Series Battery and charger with this rental but also include a d-tap cable for powering from larger cinema batteries or other sources with d-tap outputs (not included). Please note that no AC adapter is included with this rental.

Q & A

How do I access the web remote?

Once you’ve successfully connected to the Z Cam, launch a web browser and enter the following into the URL: http://10.98.33.1/www/index.html

What is the Z Cam’s default password?

The default password is 12345678.

Does this rental include an AC adapter?

No. Z Cam stopped providing AC adapters with this camera model, so one is not included with the rental.
We include a Hawk-Woods DV-F590 L-Series Battery, battery charger, and a d-tap cable for powering from larger cinema batteries or other sources with d-tap outputs.

Specifications

Brand	Z Cam
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Size 19.0 × 13.0 mm (4/3") Sensor Type CMOS Sensor Resolution Effective: 10.28 MP ISO Range 250 to 51,200
Inputs/Outputs	Audio Input 1/8" (3.5mm) stereo Audio Output 1/8" (3.5mm) stereo Video Output HDMI Type A Additional I/O USB Type C 2.5mm LANC RJ45 LAN Wireless 2.4 GHz WiFi
Item Type	Camera and Cinema Cameras
Physical	Dimensions 3.59 × 3.91 × 3.51″ Weight 1.67 lb

Includes

E2-M4 4K camera
Locking MFT mount
D-Tap to LEMO Adapter
D-Tap to barrel adapter
Non polarized cable
WiFi antenna
DV-F590 battery
AC-VQ1051D charger

Not Included

AC adapter

Specifications

Brand	Z Cam
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Size 19.0 × 13.0 mm (4/3") Sensor Type CMOS Sensor Resolution Effective: 10.28 MP ISO Range 250 to 51,200
Inputs/Outputs	Audio Input 1/8" (3.5mm) stereo Audio Output 1/8" (3.5mm) stereo Video Output HDMI Type A Additional I/O USB Type C 2.5mm LANC RJ45 LAN Wireless 2.4 GHz WiFi
Item Type	Camera and Cinema Cameras
Physical	Dimensions 3.59 × 3.91 × 3.51″ Weight 1.67 lb

Resources

Manual

Z Cam App (iOS)

Z Cam App (Android)

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$22.00	$100.00	$122.00	$40.67
4 days	$23.00	$106.00	$129.00	$32.25
7 days	$31.00	$137.00	$168.00	$24.00
10 days	$42.00	$181.00	$223.00	$22.30
14 days	$54.00	$231.00	$285.00	$20.36
21 days	$73.00	$306.00	$379.00	$18.05
30 days	$91.00	$381.00	$472.00	$15.73
45 days	$119.00	$493.00	$612.00	$13.60
60 days	$140.00	$575.00	$715.00	$11.92
90 days	$180.00	$737.00	$917.00	$10.19

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$15.00	$100.00	$115.00	$38.33
4 days	$16.00	$106.00	$122.00	$30.50
7 days	$21.00	$137.00	$158.00	$22.57
10 days	$28.00	$181.00	$209.00	$20.90
14 days	$37.00	$231.00	$268.00	$19.14
21 days	$49.00	$306.00	$355.00	$16.90
30 days	$62.00	$381.00	$443.00	$14.77
45 days	$81.00	$493.00	$574.00	$12.76
60 days	$95.00	$575.00	$670.00	$11.17
90 days	$122.00	$737.00	$859.00	$9.54

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$100.00	$33.33
4 days	$106.00	$26.50
7 days	$137.00	$19.57
10 days	$181.00	$18.10
14 days	$231.00	$16.50
21 days	$306.00	$14.57
30 days	$381.00	$12.70
45 days	$493.00	$10.96
60 days	$575.00	$9.58
90 days	$737.00	$8.19
