Canon EOS C200B EF Cinema Camera

$289.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

  • Canon EOS C200B EF
  • BP-A30 battery
  • Canon Mic Mount v2
  • CG-A20 charger
  • CA-A10 AC adapter
  • CA-CP200B AC adapter
438971086784
006256617414831832281477829715976856963838405364855873087224

Canon EOS C200B EF Cinema Camera

The Canon C200B is a professional-grade digital cinema camera in Canon’s Cinema EOS lineup. It’s essentially a modified version of the EOS C200 EF that’s designed for gimbal use. Key features include:

  • 8.85MP 4K DCI Super 35 CMOS sensor

  • 12-bit/10-bit 4K RAW or 4:2:0 8-bit in 4K UHD/2K

  • Internal 4K RAW using Cfast or 4K UHD/HD using dual SDXC

  • C200 with a minimalist design for gimbals, drones, and jibs

Read More

LR's Take

In General


This box-like camera is essentially a C200 without the EVF making it easier to balance for gimbal work, but the regular C200 may work perfectly for you as is. We recommend calling us to determine w...

Read More

Q & A

  • Are there any known third-party lens-compatibility issues with this camera?
    • In-house testing has confirmed that this camera will not recognize several Tamron G2 lenses. We recommend sticking with native Canon lenses if you need electronic focus or iris control for your shoot.

    • If you have any questions or concerns regarding lens compatibility with this camera, please contact us. support@lensrentals.com | 901-754-9100

  • Is this camera compatible with light-duty gimbals like the M5?
    • While a combination of skill, compact lenses, and/or extension arms may make it possible to accurately balance the C200 on gimbals designed for DSLR and Mirrorless systems, we only recommend flying this camera on larger gimbals like the Movi Pro.

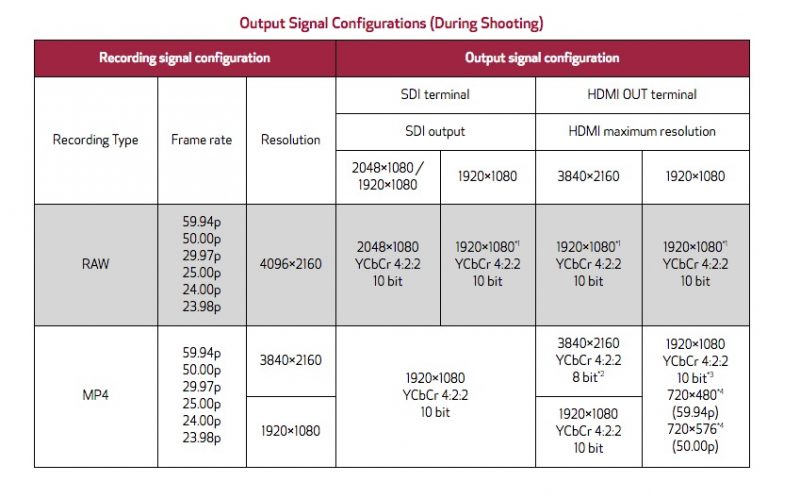

  • Does this camera output 4K via SDI?
    • No. The C200 is not capable of outputting 4K video over SDI. Currently 4K output is limited to HDMI. For full output specs, click “diagrams” in the resources section of this page.

  • Which external recorders will work with this camera?
    • At the moment, we can only recommend the Shogun Inferno. This is because when trying to record 4K at 60p, this camera won’t output the menu over HDMI. The only work-around that we know of is to use the SDI to make your adjustments, and then switch back over to HDMI. Other recorders will work if you use the C200 at 24p.

  • Can I change this camera’s codec?
    • You can’t change this camera’s codec. It’ll only record in RAW onto CFast cards, and in MP4 onto SD cards.

  • Is this the standard Canon EOS C200 Cinema Camera?
  • Specifications

    Brand

    Canon

    Camcorder Type

    Cinema

    Camera Type

    Camcorder

    Imaging

    Sensor

    • Type: CMOS
    • Size: 24.6 × 13.8
    • Effective Pixels: 8.85 MP
    Maximum Resolution
    • 4096 × 2160
    Crop Factor
    • Approximately x1.5
    Bit Depth
    • Raw: 10-bit/12-bit
    • MP4/XF-AVC: 4:2:0 8-bit
    • External 4:2:2 10-bit (additional recording device required)
    ISO
    • Dynamic Range: Approximately 13 stops
    • Default Sensitivity Range: 160-25,600
    • Expanded Sensitivity Range: 100-102,400
    • Native ISO: 800

    Inputs/Outputs

    Audio Inputs

    • 2x XLR 3-pin
    • MIC 3.5mm mini-jack
    • Monaural mic
    Audio Output
    • Headphone out 3.5mm mini-jack
    Video Outputs
    • 3G/HD-SDI BNC
    • HDMI
    Additional Inputs/Outputs
    • USB: mini-B
    • Remote: 2.5mm sub-mini jack
    • Ethernet
    • Video terminal (Canon unit control)
    • Camera grip connection terminal (Canon proprietary)

    Item Type

    Camera

    Monitoring

    Viewfinder

    • None
    LCD Panel
    • Not included
    Internal Microphone
    • Monaural

    Mount

    Canon EF

    See All

    Includes

    • Canon EOS C200B EF
    • BP-A30 battery
    • Canon Mic Mount v2
    • CG-A20 charger
    • CA-A10 AC adapter
    • CA-CP200B AC adapter

    Specifications

    Brand

    Canon

    Camcorder Type

    Cinema

    Camera Type

    Camcorder

    Imaging

    Sensor

    • Type: CMOS
    • Size: 24.6 × 13.8
    • Effective Pixels: 8.85 MP
    Maximum Resolution
    • 4096 × 2160
    Crop Factor
    • Approximately x1.5
    Bit Depth
    • Raw: 10-bit/12-bit
    • MP4/XF-AVC: 4:2:0 8-bit
    • External 4:2:2 10-bit (additional recording device required)
    ISO
    • Dynamic Range: Approximately 13 stops
    • Default Sensitivity Range: 160-25,600
    • Expanded Sensitivity Range: 100-102,400
    • Native ISO: 800

    Inputs/Outputs

    Audio Inputs

    • 2x XLR 3-pin
    • MIC 3.5mm mini-jack
    • Monaural mic
    Audio Output
    • Headphone out 3.5mm mini-jack
    Video Outputs
    • 3G/HD-SDI BNC
    • HDMI
    Additional Inputs/Outputs
    • USB: mini-B
    • Remote: 2.5mm sub-mini jack
    • Ethernet
    • Video terminal (Canon unit control)
    • Camera grip connection terminal (Canon proprietary)

    Item Type

    Camera

    Monitoring

    Viewfinder

    • None
    LCD Panel
    • Not included
    Internal Microphone
    • Monaural

    Mount

    Canon EF

    See All
