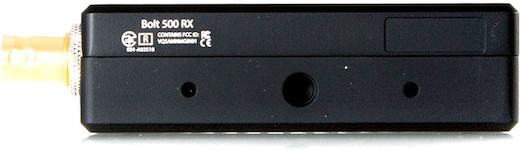

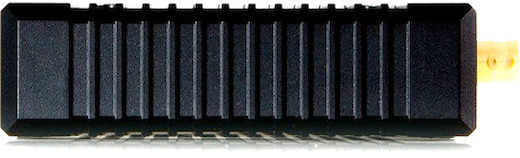

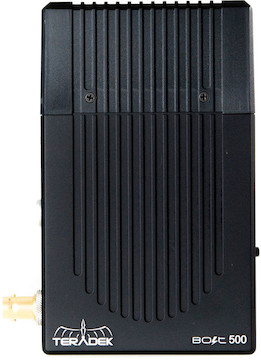

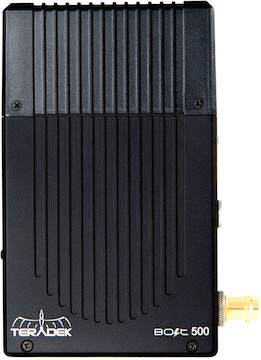

Teradek Bolt 500 3G-SDI/HDMI Wireless Receiver

$77.00
/
7 Day

Rental

Interested in purchasing?

Learn More

Includes

Resources

  • Manual
  • Teradek Bolt 500 3G-SDI/HDMI Wireless Receiver

    We offer the Teradek Bolt 500 3G-SDI/HDMI Wireless Receiver as an add-on accessory for our Teradek Bolt 500 3G-SDI/HDMI Wireless Kit. Key features include:

    • HD-SDI & HDMI output

    • Connect up to four RX to one TX

    • Powered by Sony L-series battery

    • Add-on receiver only

    Read More

    Q & A

  • What's the best way to pair this receiver?
    • While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

  • How is this receiver powered?
  • Does the Bolt 500 really work at up to 500 feet?
    • The Teradek Bolt 500 is rated to transmit a signal, line-of-sight, without environmental interferences, up to 500-feet away. This is factory data and does not reflect most real life scenarios.

    • Even with line-of-sight, it is unlikely that most people will be shooting in an environment without interference. You should always plan your wireless needs conservatively. If you need to be able to transmit over 300-feet, we recommend the Teradek Bolt 1000.

    • If you are not going to be line-of-sight, you may need to reconsider your configuration altogether. Contact us if you have any questions or concerns regarding your wireless setup.

  • Does this rental include a Sony battery charger?
  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need them, we offer HDMI cables and SDI cables as separate rental items.

  • Specifications

    Audio

    48kHz 24-bit PCM

    Brand

    Teradek

    Inputs/Outputs

    Video Outputs

    • 1x SD/HD/3G-SDI (75 ohm BNC)
    • 1x HDMI Type-A receptacle
    Additional Inputs/Outputs
    • 1x USB 3.0 micro B receptacle

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Noise Rejection

    Can coexist with WiFi and 5 GHz cordless phones

    Power Input

    2-Pin Connector 7-28 VDC

    Range

    Up to 500 feet line of sight with <0.001 sec delay

    See All

    Includes

    Specifications

    Audio

    48kHz 24-bit PCM

    Brand

    Teradek

    Inputs/Outputs

    Video Outputs

    • 1x SD/HD/3G-SDI (75 ohm BNC)
    • 1x HDMI Type-A receptacle
    Additional Inputs/Outputs
    • 1x USB 3.0 micro B receptacle

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Noise Rejection

    Can coexist with WiFi and 5 GHz cordless phones

    Power Input

    2-Pin Connector 7-28 VDC

    Range

    Up to 500 feet line of sight with <0.001 sec delay

    See All

    Resources

  • Manual
  • Reviews

    See Reviews
