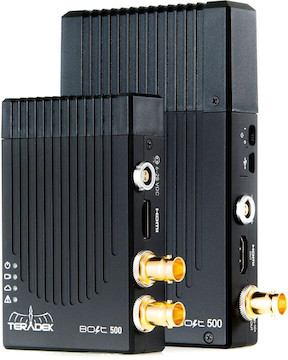

Teradek Bolt 500 3G-SDI/HDMI Wireless Kit

Includes

While this Teradek kit is no longer available for rent, here’s a link to our current selections.

How is this kit powered?

We include two Sony L-series battery plates, two Hawk-Woods DV-F790 L-Series Batteries and one Sony AC-VQ1051D Battery Charger with the rental.
This kit also includes a single AC adapter in case you need a continuous, long-term power option.
Additionally, this kit includes one Teradek 2-Pin LEMO to D-Tap Cable for use with Gold Mount and V-Mount setups. Additional cables are available as separate rental items.

What's the best way to pair this kit?

While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

Does the Bolt 500 really work at up to 500 feet?

The Teradek Bolt 500 is rated to transmit a signal, line-of-sight, without environmental interferences, up to 500-feet away. This is factory data and does not reflect most real life scenarios.
Even with line-of-sight, it is unlikely that most people will be shooting in an environment without interference. You should always plan your wireless needs conservatively. If you need to be able to transmit over 300-feet, we recommend the Teradek Bolt 1000.
If you are not going to be line-of-sight, you may need to reconsider your configuration altogether. Contact us if you have any questions or concerns regarding your wireless setup.

Will this kit arrive paired?

This kit does not ship with the receiver and transmitter paired. By default, the transmitter and receiver are designed to find the strongest frequency at close range within the first few seconds of powering on. We recommend pairing this kit on location to achieve the strongest possible connection.

Can the Bolt 500 transmitter or receiver be used with other Teradek Bolt series such as the Bolt Pro 300 or 1000?

No, each Bolt series can only send and receiver signals to other units within that same series.

Need multiple receivers?

We also rent additional Teradek Bolt 500 SDI/HDMI Receivers as a simple add-on for multiple receiver setups.
The Bolt 500 transmitter can send it’s signal to up to 4x Bolt 500 receivers.

Does this rental include HDMI or SDI cables?

This rental doesn’t include HDMI or SDI cables. If you need them, we offer HDMI cables and SDI cables as separate rental items.

Brand	Teradek
Item Type	Monitoring
Monitoring Type	Wireless

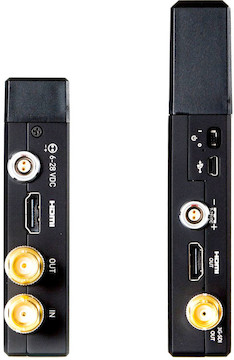

Receiver	Outputs 1x HD/3G-SDI 1x HDMI Type A Dimensions 1.0” x 3.5” x 5.8” Weight (RX Only) 10.5 oz Mount Compatibility ¼-20 Multicast Capable 4 (RX):1 (TX)
Transmitter	Inputs 1x HD/3G-SDI 1x HDMI Type A Output 1x HD/3G-SDI Loop-out Dimensions 1” x 2.6” x 4.0” Weight 7.6oz Mount Compatibility ¼-20 Multicast Capable 1 (TX):4 (RX)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 8-bit (with format conversion)/10-bit (without format conversion) HDMI: RGB 4:4:4 8-bit Supported Formats 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60
Wireless	Latency <0.001 sec Range Up to 500’ line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz

Brand	Teradek
Item Type	Monitoring
Monitoring Type	Wireless
Receiver	Outputs 1x HD/3G-SDI 1x HDMI Type A Dimensions 1.0” x 3.5” x 5.8” Weight (RX Only) 10.5 oz Mount Compatibility ¼-20 Multicast Capable 4 (RX):1 (TX)
Transmitter	Inputs 1x HD/3G-SDI 1x HDMI Type A Output 1x HD/3G-SDI Loop-out Dimensions 1” x 2.6” x 4.0” Weight 7.6oz Mount Compatibility ¼-20 Multicast Capable 1 (TX):4 (RX)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 8-bit (with format conversion)/10-bit (without format conversion) HDMI: RGB 4:4:4 8-bit Supported Formats 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60
Wireless	Latency <0.001 sec Range Up to 500’ line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz
