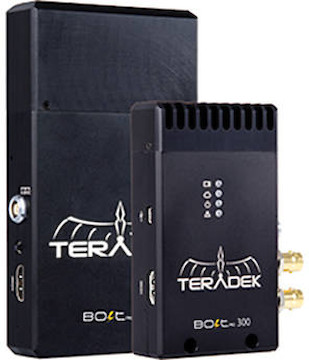

Teradek Bolt Pro 300 Wireless HD-SDI/HDMI Kit

869534199790

Recommended:

$256.00
/
7 Day

Rental

Available Tuesday

Renting this item will adjust your rental dates.

Interested in purchasing?

Learn More

Includes

  • Bolt Pro 300 transmitter with Sony L Series Battery Plate
  • Bolt Pro 300 receiver with Sony L Series Battery Plate
  • (2) Sony NP-F970 Batteries
  • Sony Dual Battery Charger
  • Hardware Kit: (2) 1/4"-20 × 1.5″ screws & 3/16" allen key
  • Hot Shoe Mount
  • Redrock microMount
  • USB 2.0 Cable

AC adapters available upon request.
HDMI/SDI cables are not included

Resources

  • Manual
  • Teradek Bolt Pro 300 Wireless HD-SDI/HDMI Kit

    The Teradek Bolt Pro 300 Wireless HD-SDI/HDMI kit is an industry favorite for wireless video transmission. Key features include:

    • SDI & HDMI Input / Output. That’s right, these support cross conversion! You can input a signal from an SDI or HDMI source and output from either one on the other end.
    • High Frame Rate Wireless Monitoring. Offers support for uncompressed 10-bit 4:2:2 1080p video at up to 60 frames per second. Line-of-sight transmission is up to 300′ without break-up or image degradation, and 100′+ without line-of-sight with less than 1ms latency.
    • Sony L-Series Powered. For our kit, we opted to add Sony L-Series battery brackets to both transmitter and receiver. With the (2) included Sony NP-F970 batteries you’ll see roughly 5 hours of use. If you’re already using an Anton Bauer or V-mount setup, we also rent the Teradek 2-Pin LEMO to D-Tap Cable.

    HDMI / SDI cables not included!

    Specifications

    Audio

    48kHz 24-bit PCM

    Brand

    Teradek

    Color sampling

    Y:Cb:Cr 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later) and RGB 4:4:4 (HDMI out, 8-bit color)

    Consumption(1080p60)

    8.2Watts

    Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

    Inputs

    1 × 75 Ohm BNC and 1 x Type A receptacle HDMI

    Item Type

    Monitoring and Recorder

    Monitoring Type

    Wireless

    See All

    Includes

    • Bolt Pro 300 transmitter with Sony L Series Battery Plate
    • Bolt Pro 300 receiver with Sony L Series Battery Plate
    • (2) Sony NP-F970 Batteries
    • Sony Dual Battery Charger
    • Hardware Kit: (2) 1/4"-20 × 1.5″ screws & 3/16" allen key
    • Hot Shoe Mount
    • Redrock microMount
    • USB 2.0 Cable

    AC adapters available upon request.
    HDMI/SDI cables are not included

    Specifications

    Audio

    48kHz 24-bit PCM

    Brand

    Teradek

    Color sampling

    Y:Cb:Cr 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later) and RGB 4:4:4 (HDMI out, 8-bit color)

    Consumption(1080p60)

    8.2Watts

    Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

    Inputs

    1 × 75 Ohm BNC and 1 x Type A receptacle HDMI

    Item Type

    Monitoring and Recorder

    Monitoring Type

    Wireless

    See All
