ATOMOS Shogun Flame 4K HDMI / SDI Recorder
Includes
- Shogun Flame
- 2x Sony NP-F970
- Fast Battery Charger
- USB 3.0 SSD Dock
- LANC / Serial Loop Cable
- D-Tap to DC Cable
- Lemo to XLR Breakout Cable
- 2x Simsukian AC Adapter
- 4x SSD Master Caddy II
- Black Shogun Sun Hood w/ Front Cover
- Case

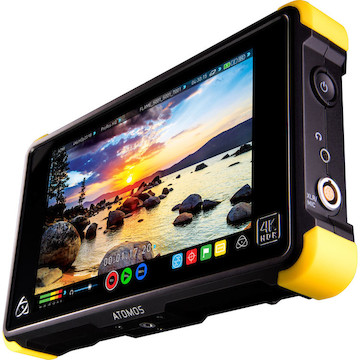

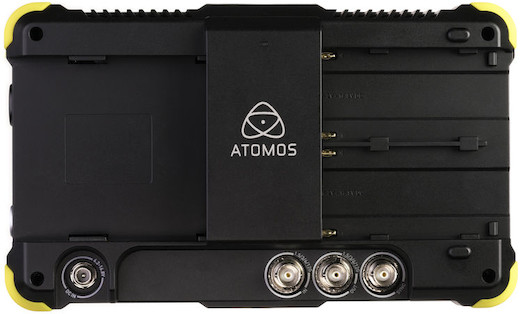

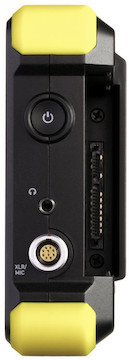

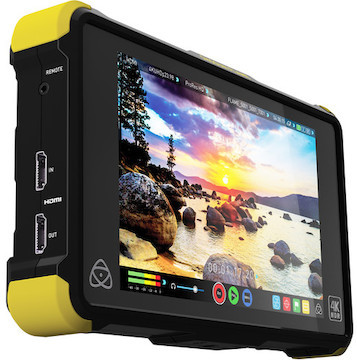

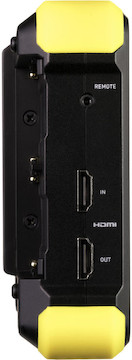

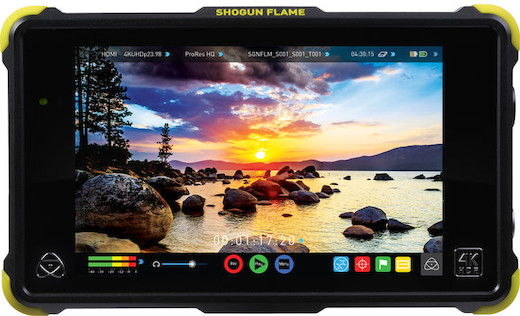

ATOMOS Shogun Flame 4K HDMI / SDI Recorder
The Atomos Shogun Flame is a 7-in. 4K HDMI & SDI HDR monitor with recording in 10-bit 4:2:2 ProRes, DNxHD, and DNxHR and is an upgrade to the Atomos Shogun. Key features include:
10-stop dynamic range; 10-bit signal processor
High Bright mode for easy outdoor use
Captures UHD 4K (3840 × 2160) at up to 120 fps (1080p only)
Improved, more durable construction
Q & A
No. As of April, 2017 you will need to download the Panasonic RAW to VLog Correction LUT from Atomos.
Only the following cameras support DCI RAW: Sony FS700, Sony FS7, Canon C300 MKII, and Canon C500.
Specifications
| Brand | Atomos |
| Codec / Format Support | Ultra HD 4K: Apple ProRes HQ, 422, and LT (10-bit, 4:2:2) & Avid DNxHR HQX, HQ, SQ, LB and HD: Apple ProRes HQ, 422, and LT (10-bit, 4:2:2) & Avid DNxHD 220/220x, 145, 36 |
| Connections | 1 x HDMI In, 1 x HDMI Out, 1 × 12G-SDI In, BNC, 1 × 12G-SDI Out, BNC, 1 x Genlock In, BNC, 1 x LANC In, 1 × 3.5 mm audio output jack, and 1 x USB |
| Item Type | Monitoring and Recorder |
| Monitoring Type | Monitor |
| Recording | 4096 × 2160p 23.98/24/25/29.97/30 (DCI RAW from Supported Cameras), 3840 × 2160p 23.98/24/25/29.97/30, 1920 × 1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120, 1920 × 1080pSF 23.98/24/25/29.97/30, 1920 × 1080i 50/59.94/60, and 1280 × 720p 50/59.94/60 |
| Storage | SSD and Please note: DCI RAW is only supported from the following cameras – Sony FS700, Sony FS7, Canon C300 MKII, Canon C500 |
Includes
- Shogun Flame
- 2x Sony NP-F970
- Fast Battery Charger
- USB 3.0 SSD Dock
- LANC / Serial Loop Cable
- D-Tap to DC Cable
- Lemo to XLR Breakout Cable
- 2x Simsukian AC Adapter
- 4x SSD Master Caddy II
- Black Shogun Sun Hood w/ Front Cover
- Case
Specifications
| Brand | Atomos |
| Codec / Format Support | Ultra HD 4K: Apple ProRes HQ, 422, and LT (10-bit, 4:2:2) & Avid DNxHR HQX, HQ, SQ, LB and HD: Apple ProRes HQ, 422, and LT (10-bit, 4:2:2) & Avid DNxHD 220/220x, 145, 36 |
| Connections | 1 x HDMI In, 1 x HDMI Out, 1 × 12G-SDI In, BNC, 1 × 12G-SDI Out, BNC, 1 x Genlock In, BNC, 1 x LANC In, 1 × 3.5 mm audio output jack, and 1 x USB |
| Item Type | Monitoring and Recorder |
| Monitoring Type | Monitor |
| Recording | 4096 × 2160p 23.98/24/25/29.97/30 (DCI RAW from Supported Cameras), 3840 × 2160p 23.98/24/25/29.97/30, 1920 × 1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120, 1920 × 1080pSF 23.98/24/25/29.97/30, 1920 × 1080i 50/59.94/60, and 1280 × 720p 50/59.94/60 |
| Storage | SSD and Please note: DCI RAW is only supported from the following cameras – Sony FS700, Sony FS7, Canon C300 MKII, Canon C500 |
