BirdDog P200 Basic Streaming Kit w/ RS232 Remote PTZ Control

$275.00
/
7 Day

Rental

Available 10/28/24

Renting this item will adjust your rental dates.

Interested in purchasing?

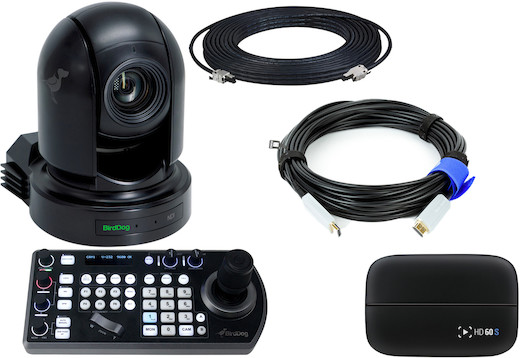

Includes

  • BirdDog Eyes P200 NDI PTZ Camera

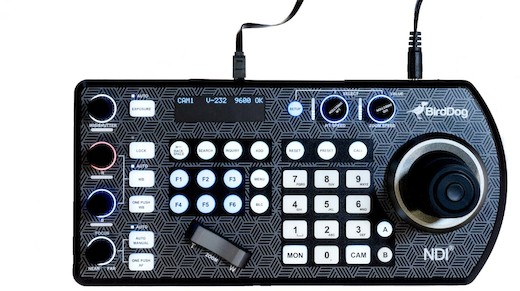

  • BirdDog PTZ Keyboard

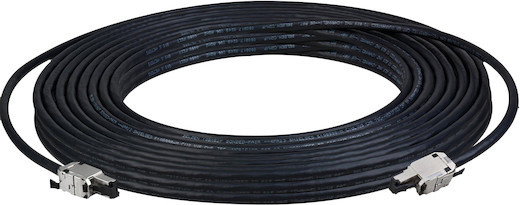

  • Belden 150ft Cat 6A Ethernet Cable

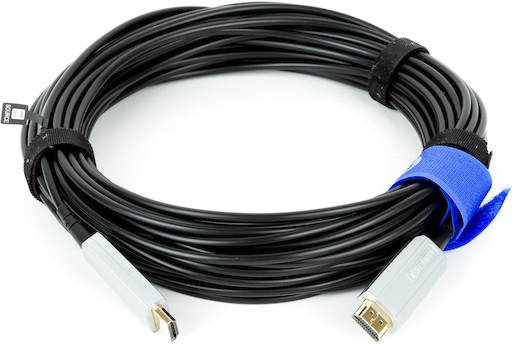

  • Monoprice 50-foot SlimRun AV 4K HDMI Male-Male Cable

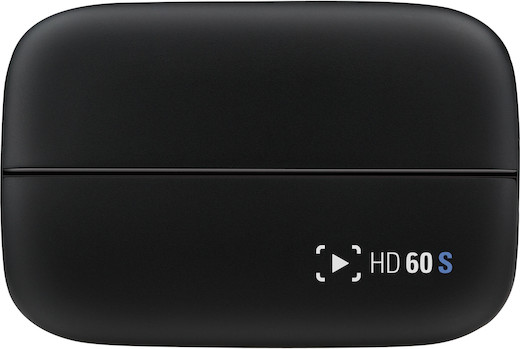

  • Elgato Game Capture HD60 S

  • BirdDog IR Remote

BirdDog P200 Basic Streaming Kit w/ RS232 Remote PTZ Control

The BirdDog P200 Basic Streaming Kit w/ RS232 Remote PTZ Control is a one-click, end-to-PC, PTZ camera control and streaming solution that is both Windows and Mac compatible and requires no IP or advanced networking experience to get started. Perfect for capturing and streaming virtual events, our kit is centered around the popular BirdDog P200 PTZ camera and includes all the accessories and cables you’ll need to start streaming from a compatible computer while allowing you the freedom to choose your own tripod.

The BirdDog P200 RS232 Remote PTZ Control Capture Kit includes:

You might also consider adding:

Support
Power Cables
Lighting

Q & A

  • How can I change the resolution and frame rate?
    • You can adjust the resolution and frame rate through the WebUI and the IR remote. The dial has been phased out in recent firmware updates and can no longer be used to make adjustments.

  • Are there any compatibility concerns with this package?
    • The latest BirdDog updates require that the PTZ Keyboard (v4.5.203-LTS) and P200 camera (v4.5.3414-LTS) be fully updated in order to work together. Both items in this kit will be updated before shipment.

  • Will I need anything else?
    • Yes! To start streaming, you will need to source your own compatible mac or windows computer with the most current Elgato Game Capture software installed. For first time streamers, we also recommend setting up an account on the streaming platform of your choice in advance. Please note, the Elgato HD60 S is optimized for Youtube Live, Facebook Live, and Twitch!

    • In addition to a computer and software, you may want to consider adding a tripod and surge protectors to your order.

  • Can I use an external monitor while streaming?
    • Yes! If you’d like a monitor for a client or talent view, you can use the P200’s SDI port to output to a monitor on set or you can use the Elgato’s HDMI output to loop to an operator’s monitor.

  • What are the system requirements for the HD60S?
    • Mac: macOS Sierra 10.12 or later, 4th generation quad‑core Intel Core i5 CPU (i5-4xxx or comparable), Dedicated GPU (AMD or nVIDIA), 4GB RAM

    • Windows: Windows 10 (64-bit), 4th generation quad‑core Intel Core i5 CPU (i5-4xxx or comparable), Intel HD, NVIDIA GeForce GTX 600 series or VCE 3.x compatible AMD graphics (or better), 4GB RAM

    • If you have any questions regarding your computer system’s compatibility with this kit, contact us and a tech will be happy to help you assess your setup.

  • Is this kit expandable to include more than one camera?
    • This kit is designed for a single camera and operator. If you are looking for a similar package with more than one camera, contact us

  • Can I use this kit to capture my footage?
    • Yes! The Elgato Game Capture HD60 S allows you to capture footage directly to your computer’s hard drive.

  • Specifications

    Brand

    BirdDog

    Camcorder Type

    PTZ

    Camera Type

    Camcorder

    Inputs/Outputs

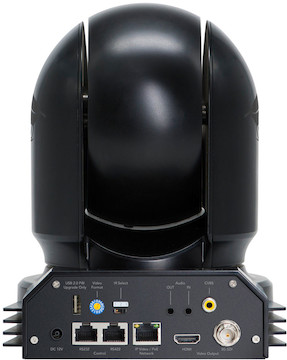

    P200:
    Video Outputs

    • NDI
    • HDMI
    • SDI
    Output Formats
    • 1080p 60/59.94/50/29.97/25
    • 1080i 60/59.94/50
    • 720p 60/59.94/50/29.97/25
    Audio I/O
    • 3.5mm Stereo
    Control Interface
    • IP PTZ Control (auto configuring)
    • Serial PTZ Control (2x RJ45)
    • Serial Control Protocol (VISCA/Pelco D)

    HD60:
    Audio Inputs
    • None
    Audio Output
    • None
    Video Input
    • HDMI Type-A
    Supported Resolutions
    • 1920 × 1080p at 30/60 fps
    • 1920 × 1080i
    • 1280 × 720p at 30/60 fps
    • 768 × 576p
    • 768 × 576i
    • 800 × 480p
    Video Output
    • HDMI Type-A
    Additional Inputs/Outputs
    • USB 3.1 Gen 1 Type-C (computer connection)

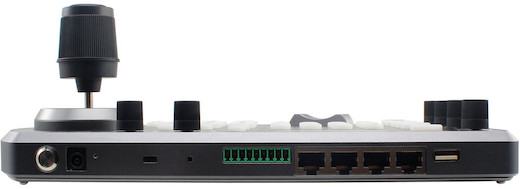

    PTZ Keyboard:
    LAN: (1) RJ45 (with PoE) 100 Base-TX
    RS-232: (1) RJ45
    RS-422: (2) RJ45

    Item Type

    Camera, Package, Monitoring, and PTZ Cameras

    Lens

    Focal Length

    • 4.3-129mm
    Aperture
    • F/1.6-4.7
    Zoom
    • 30x Optical Zoom
    • 12x Digital Zoom

    Monitoring Type

    Streaming

    Package Type

    PTZ Video

    See All

    Includes

    • BirdDog Eyes P200 NDI PTZ Camera

    • BirdDog PTZ Keyboard

    • Belden 150ft Cat 6A Ethernet Cable

    • Monoprice 50-foot SlimRun AV 4K HDMI Male-Male Cable

    • Elgato Game Capture HD60 S

    • BirdDog IR Remote

    Specifications

    Brand

    BirdDog

    Camcorder Type

    PTZ

    Camera Type

    Camcorder

    Inputs/Outputs

    P200:
    Video Outputs

    • NDI
    • HDMI
    • SDI
    Output Formats
    • 1080p 60/59.94/50/29.97/25
    • 1080i 60/59.94/50
    • 720p 60/59.94/50/29.97/25
    Audio I/O
    • 3.5mm Stereo
    Control Interface
    • IP PTZ Control (auto configuring)
    • Serial PTZ Control (2x RJ45)
    • Serial Control Protocol (VISCA/Pelco D)

    HD60:
    Audio Inputs
    • None
    Audio Output
    • None
    Video Input
    • HDMI Type-A
    Supported Resolutions
    • 1920 × 1080p at 30/60 fps
    • 1920 × 1080i
    • 1280 × 720p at 30/60 fps
    • 768 × 576p
    • 768 × 576i
    • 800 × 480p
    Video Output
    • HDMI Type-A
    Additional Inputs/Outputs
    • USB 3.1 Gen 1 Type-C (computer connection)

    PTZ Keyboard:
    LAN: (1) RJ45 (with PoE) 100 Base-TX
    RS-232: (1) RJ45
    RS-422: (2) RJ45

    Item Type

    Camera, Package, Monitoring, and PTZ Cameras

    Lens

    Focal Length

    • 4.3-129mm
    Aperture
    • F/1.6-4.7
    Zoom
    • 30x Optical Zoom
    • 12x Digital Zoom

    Monitoring Type

    Streaming

    Package Type

    PTZ Video

    See All
