Roland V-1HD-W Web Streaming Kit

$80.00
/
7 Day

Rental

Interested in purchasing?

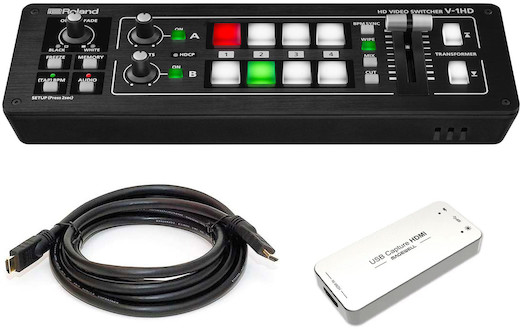

Includes

  • Roland V-1HD

  • Magewell USB Capture HDMI

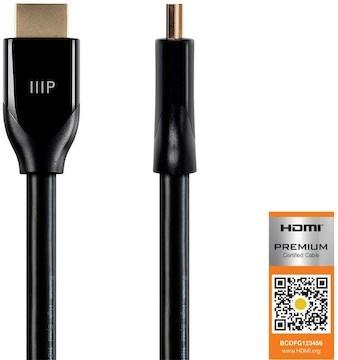

  • 15’ HDMI Male-Male cable

Roland V-1HD-W Web Streaming Kit

The Roland V-1HD-W Web Streaming Kit is a compact, user-friendly HD video streaming kit that allows you to take your mix to the platform of your choosing using a compatible computer (not included) to capture or stream. Centered around the Roland V-1HD 4x HDMI Input Switcher, this kit provides a tactile controller for switching between up to four HDMI video sources in a highly portable package that is both Mac and PC compatible. Click on any of the items below for more information.

The Roland V-1HD-W Web Streaming Kit includes:

You might also consider adding:

Monitors
HDMI Cables
Power Cables

Q & A

  • Does this kit require a USB 3.0 capable computer?
    • Yes. The Magewell USB Capture HDMI Gen 2 will not function properly on a computer with only USB 2.0 ports.

  • Does this rental include any HDMI cables?
    • This kit includes one 15’ HDMI cable that allows you to connect the switcher to the capture card but it does not include any dedicated camera cables.

    • Rather than bundling a variety of HDMI cables to ensure compatibility with your camera of choice, and increasing the rental price, we’ll let you be the judge of what you need. You can see the HDMI cables we carry here.

  • Can I use this kit with SDI cables?
  • Specifications

    Audio Type

    Switching

    Brand

    Roland

    Inputs/Outputs

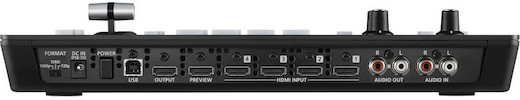

    Roland V-1HD
    Audio Inputs

    • Audio In: RCA pin type

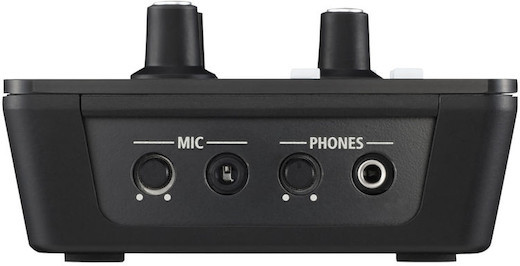

    • Mic: Stereo mini type
    Audio Outputs
    • Audio Out: RCA pin type
    • Headphones: Stereo mini type
    Video Inputs
    • 4X HDMI
    Video Outputs
    • Multiview: 1X HDMI
    • Program View: 1X HDMI
    Additional Inputs/Outputs
    • USB: B Type (for control from PC)
    • MIDI: In, Out/Thru

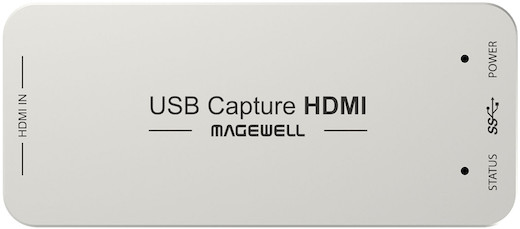

    Magewell USB Capture
    Audio Inputs/Output
    • None
    Video Input

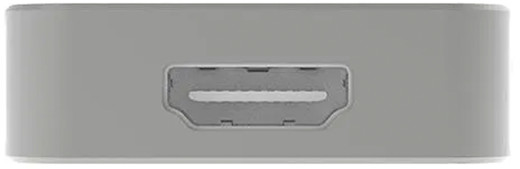

    • HDMI Type-A
    Video Output
    • None
    Additional Inputs/Outputs

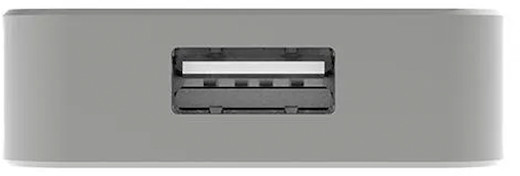

    • USB 3.2 Gen 1 Type-A (computer connection)

    Item Type

    Switcher and Monitoring

    Monitoring Type

    Accessories and Streaming

    Video Effects

    Transitions

    • Cut
    • Mix
    • Wipe
    • Transformer
    Filters
    • Negative
    • Emboss
    • Colorize
    • Colorpass
    • Posterize
    • Silhouette
    • Flip
    Keying
    • Picture-in-Picture
    • Chroma Key
    • Luminance Key
    • Graphics Key

    Video Processing

    Bit Depth

    • 4:2:2 (Y/Pb/Pr)
    • 8 bit
    Formats
    • 1080p: 50/59.94
    • 1080i: 50/59.94
    • 720p: 50.59.94
    Audio
    • 48 kHz
    • 24 bit

    Includes

    • Roland V-1HD

    • Magewell USB Capture HDMI

    • 15’ HDMI Male-Male cable

    Specifications

    Audio Type

    Switching

    Brand

    Roland

    Inputs/Outputs

    Roland V-1HD
    Audio Inputs

    • Audio In: RCA pin type
    • Mic: Stereo mini type
    Audio Outputs
    • Audio Out: RCA pin type
    • Headphones: Stereo mini type
    Video Inputs
    • 4X HDMI
    Video Outputs
    • Multiview: 1X HDMI
    • Program View: 1X HDMI
    Additional Inputs/Outputs
    • USB: B Type (for control from PC)
    • MIDI: In, Out/Thru

    Magewell USB Capture
    Audio Inputs/Output
    • None
    Video Input
    • HDMI Type-A
    Video Output
    • None
    Additional Inputs/Outputs
    • USB 3.2 Gen 1 Type-A (computer connection)

    Item Type

    Switcher and Monitoring

    Monitoring Type

    Accessories and Streaming

    Video Effects

    Transitions

    • Cut
    • Mix
    • Wipe
    • Transformer
    Filters
    • Negative
    • Emboss
    • Colorize
    • Colorpass
    • Posterize
    • Silhouette
    • Flip
    Keying
    • Picture-in-Picture
    • Chroma Key
    • Luminance Key
    • Graphics Key

    Video Processing

    Bit Depth

    • 4:2:2 (Y/Pb/Pr)
    • 8 bit
    Formats
    • 1080p: 50/59.94
    • 1080i: 50/59.94
    • 720p: 50.59.94
    Audio
    • 48 kHz
    • 24 bit
